HOWTO: Setting up LookerStudio to use the AdventureWorks db set up at neon.com

1. Log in in a google account. At url, proceed to lookerstudio.google.com,
   • select Blank Report
   • in Connect to data, click PostgreSQL

2. Log in to neon.com account using github (preferred)

   • select db to use then click Connect to get connection string, copy snippet Ex. postgresql://neondb_owner:******@ep-muddy-cherry-aiacm753-pooler.c-4.us-east-1.aws.neon.tech/adventureworks-db?sslmode=require&channel_binding=require
3. Go back to lookerstudio, fill as follows:
   • host name or ip: ep-muddy-cherry-aiacm753-pooler.c-4.us-east-1.aws.neon.tech
   • port: 5432
   • database: adventureworks-db
   • username: neondb_owner
   • password:
   • click Enable SSL

   • postgresql ssl configuration files: find this file: isrgrootx1.pem

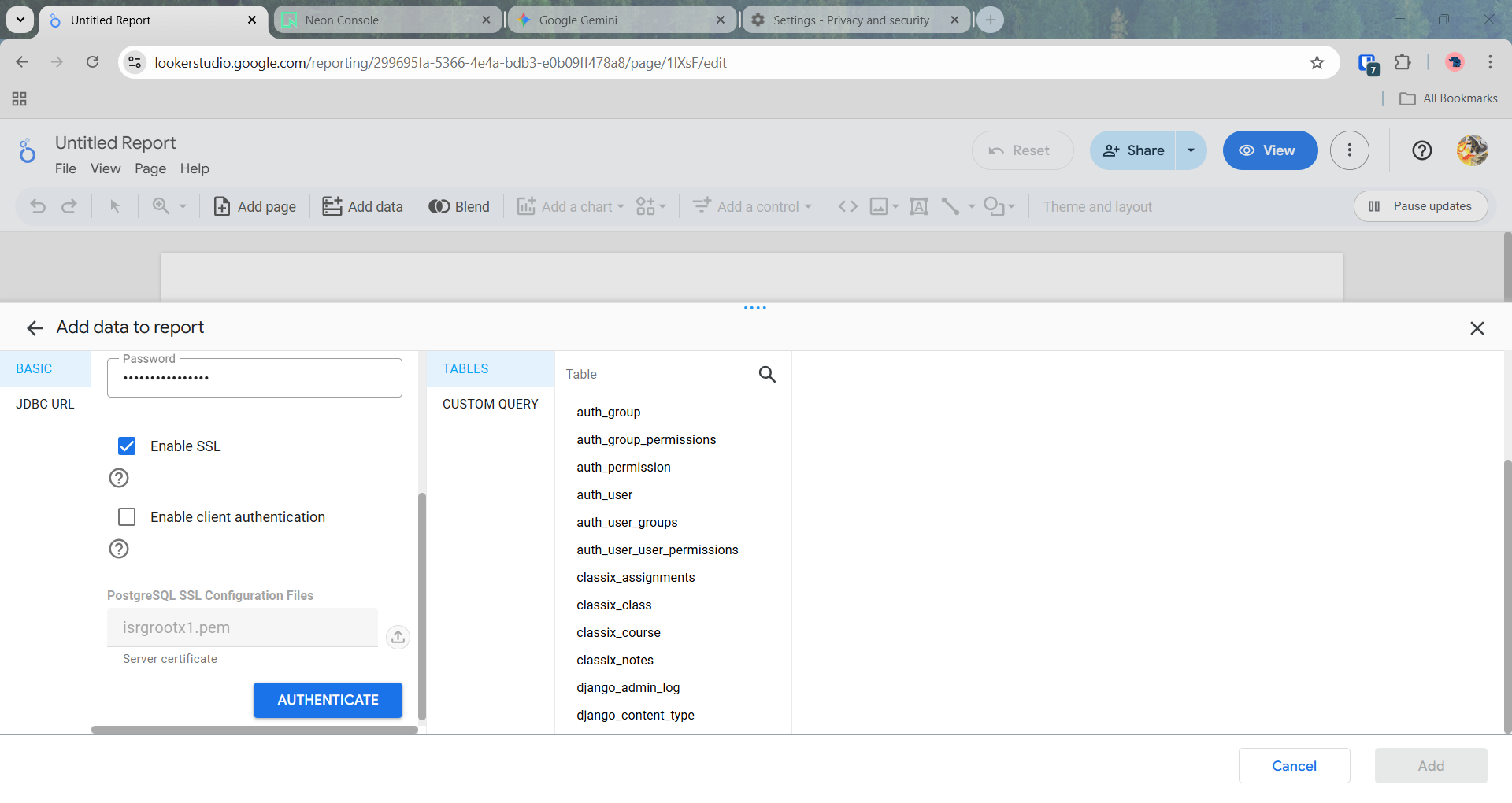

   • click Authenticate



4. Select Custom Query, enter in the textbox on the right:

SELECT h.salesorderid, h.orderdate, h.duedate, h.shipdate, h.status, h.onlineorderflag, h.purchaseordernumber, h.accountnumber, h.customerid, h.salespersonid, h.territoryid, h.billtoaddressid, h.shiptoaddressid, h.shipmethodid, h.creditcardid, h.creditcardapprovalcode, h.currencyrateid, h.subtotal, h.taxamt, h.freight, h.totaldue, d.salesorderdetailid, d.carriertrackingnumber, d.orderqty, d.productid, d.unitprice, d.unitpricediscount, d.orderqty::numeric * d.unitprice * (1::numeric - d.unitpricediscount)::numeric(16,4) AS lineamount, p.name AS productname, p.productnumber, p.productnumber || ‘-‘ || p.name “Product_Name”, p.makeflag, p.finishedgoodsflag, p.safetystocklevel, p.reorderpoint, –p.standardcost, –pch.standardcost, p.listprice, p.size, p.productsubcategoryid, p.discontinueddate, pc.name AS “Product_Category”, –‘x’ as dummy, pcs.name AS “Product_Subcategory”, t.name AS “Territory_Name”, t.countryregioncode, t.”group” AS “Territory_Group”, c.personid, c.storeid, c.territoryid AS c_territoryid, pe.businessentityid AS customer_id, pe.persontype AS cust_type, pe.firstname AS cust_firstname, pe.lastname AS cust_lastname, cast(h.customerid as text) || ‘-‘ || pe.lastname || ‘, ‘ || pe.firstname “Customer_Name”, pe2.businessentityid AS salesperson_id, pe2.persontype AS sp_type, pe2.firstname AS sp_firstname, pe2.lastname AS sp_lastname FROM sales.salesorderheader h JOIN sales.salesorderdetail d ON h.salesorderid = d.salesorderid JOIN production.product p ON d.productid = p.productid –left join production.productcosthistory pch on (d.productid = pch.productid) JOIN sales.customer c ON c.customerid = h.customerid JOIN sales.salesterritory t ON t.territoryid = h.territoryid JOIN production.productsubcategory pcs ON p.productsubcategoryid = pcs.productsubcategoryid JOIN production.productcategory pc ON pcs.productcategoryid = pc.productcategoryid LEFT JOIN person.person pe ON c.personid = pe.businessentityid LEFT JOIN person.person pe2 ON h.salespersonid = pe2.businessentityid ;
